SDS dry desulfurization

Perman is the first company engaged in the research and development and production of baking soda grinding machine specifically for SDS dry desulfurization, sodium bicarbonate (baking soda) grinding machine can effectively remove 95% SO? and 99% HCL in exhaust gas, high efficiency, low cost, there are (more than 2000) SDS dry desulfurization related cases, Widely used in many steel plants, coking plants, waste incineration, petrochemical, lime kiln, industrial silicon, power generation, cement and other industries.

Click for a free plan quote 86 150-5445-0868

60 second response

30 minutes reply

24-hour customization

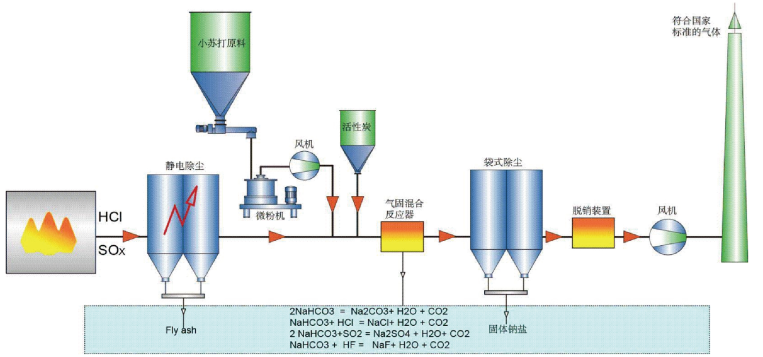

Scheme flow chart

66116da29956b4785c0976bd77aa70d

Perman offers production lines that meet the following requirements

01
specialization
Suitable for ultra-fine powder,It has the effect of dispersing and deaggregating false aggregation.
02
fining
2μm-150μm ultrafine grinding/grading, the finished particle size is adjustable and controllable
03
intelligentize
PLC automatic control system, easy to operate
04
Environmental protection
Fully closed negative pressure operation, no dust spill

17540121694431135

Process Description

Raw materials enter the grinding chamber of the mill through a quantitative feeding device, where they undergo ultra-fine grinding through mutual impact, collision, friction, shearing, and extrusion between the materials and the high-speed rotating grinding disc and particles. The crushed materials are transported by the ascending airflow to the impeller classification zone, where they are separated into coarse and fine powders under the centrifugal force of the classification wheel and the suction force of the fan. The qualified fine powder is transported by the conveying fan to the desulfurization tower and flue gas pipeline for reaction, while the unqualified powder is returned to the grinding chamber by the internal classifier for further grinding until it meets the requirements.

Main configuration names, models, and quantities of equipment

Serial Number	Name	Brand, model, and specification	quantity	unit
The buyer shall set up feeding devices, storage devices, feeding devices, etc. according to the project situation; Currently, common grinding systems include direct injection systems and secondary injection systems. These systems can be arranged independently, with forward and reverse spirals, or with one silo and two outlets, one in operation and one as a backup, depending on the project settings; The table below lists the main equipment of the grinding system (which can also be selected and equipped according to the project):
1	Quantitative feeding system	Standard motor (user can specify the brand)	1	套
2	grinding system	Standard motor (user can specify the brand)	1	套
3	Rating System	Standard motor (user can specify the brand)	1	套
4	Conveyor fan system	Standard motor (user can specify the brand)	1	套
5	Soft connection at the inlet of quantitative feeding	Material: Non-metallic	1	件
6	Soft connection for quantitative feeding outlet	Material: Non-metallic	1	件
7	Soft connection at fan inlet	Material: Non-metallic	1	件
8	Main equipment rack	Carbon steel (material can be specified)	1	套
9	Equipment shock pad	rubber	1	套
10	anchor bolt	carbon steel	1	套
11	Graded gas seal	Hose, ball valve, solenoid valve, filter regulator	1	套
12	Fan online sampling port	Carbon steel, 1/2 ball valve	1	件
13	Temperature sensor	Premium brand (user can specify the brand)	1	件
14	Vibration sensor	Premium brand (user can specify the brand)	1	件
15	Anti-caking dosing system	PE bucket, spray head, pressure reducing valve, metering pump (propylene glycol agent to be provided by the buyer)	1	套
16	Intake muffler	Material: Carbon steel	1	件
